RASTAS RADIATORS Creative Design, Perfect Life

CLASSIC
Height mm	Length mm	Axe mm	Heat Output Watt
Height mm	Length mm	Axe mm	75°/65°/20°C	90°/70°/20°C
800	500	460	340	425
800	600	560	450	562
1200	500	460	545	681
1200	600	560	701	876
1600	500	460	746	932
1600	600	560	950	1187
1800	500	460	805	1006
1800	600	560	1030	1287

CLASSIC Collectors with D 30x40 mm and horizontal tubes: Ø 21 mm

FINISH : RAL 9016 and Chrome plate are availabele up on request.

COMFORT
Height mm	Length mm	Axe mm	Heat Output Watt
Height mm	Length mm	Axe mm	75°/65°/20°C	90°/70°/20°C
800	500	450	396	495
800	600	550	468	585
1200	500	450	572	715
1200	600	550	676	843
1400	500	450	638	797
1400	600	550	752	940
1600	500	450	832	1040
1600	600	550	961	1200
1800	500	450	1020	1275
1800	600	550	1105	1380

COMFORT : Collectors Ø 32 mm and horizontal tubes: Ø 21 mm

FINISH : RAL 9016 and Chrome plate are availabele up on request.

MODEL S
Height mm	Length mm	Axe mm	Heat Output Watt
Height mm	Length mm	Axe mm	75°/65°/20°C	90°/70°/20°C
1050	500	50	402	503
1050	600	50	467	584
1330	500	50	496	620
1330	600	50	569	712
1750	500	50	660	825
1750	600	50	763	954

- MODEL S vertical collector Ø 38 mm and horizontal tubes: Ø 19 mm

- FINISH: RAL 9016 white and chrome plate availabele up on request

ZETA
Height mm	Length mm	Axe mm	Heat Output Watt
			75°/65°/20°C	90°/70°/20°C
1130	600	100	416	518
	650		438	548
1350	600	100	503	627
	650		525	663

1800	600	100	704	861
	650		743	928

-ZETA vertical collectors Ø 32 mm and horizontal tubes: Ø 21 mm

- FINISH: RAL 9016 white and chrome plate availabele up on request

Axe : 100 mm and 50 mm on request

FOCUS
Height mm	Length mm	Axe mm	Heat Output Watt
			75°/65°/20°C	90°/70°/20°C
1130	600	100	424	529
	650		447	559
1350	600	100	512	640
	650		541	676

1800	600	100	718	897
	650		758	947

-FOCUS vertical collectors Ø 32 mm and horizontal tubes: Ø 21 mm

- FINISH: RAL 9016 white and chrome plate availabele up on request

- Axe : 100 mm and 50 mm on request

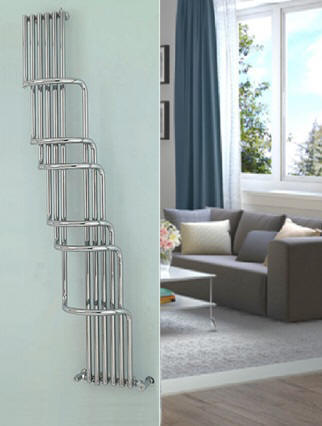

SANTANA
Height mm	Length mm	Axe mm	Heat Output Watt
			75°/65°/20°C	90°/70°/20°C

1600	630	1550	680	850
1800	630	1750	740	925

-SANTANA Horizontal collectors Ø 32 mm and Vertical tubes: Ø 25 mm

- FINISH: RAL 9016 white and chrome plate availabele up on request

ELEGANCE
Height mm	Length mm	Axe mm	Heat Output Watt
			75°/65°/20°C	90°/70°/20°C
1300	500	100	482	602
	600		552	690

1780	500	100	650	812
	600		726	907

-ELEGANCE vertical collectors Ø 32 mm and horizontal tubes: Ø 21 mm

- FINISH: RAL 9016 white and chrome plate availabele up on request

LIBERTY
Length mm	LHeat Output 75/65/20ºC	Height mm
Length mm	LHeat Output 75/65/20ºC	1000	1200	1400	1600	1800	2000
320	Watts	369	435	501	566	630	694
400	Watts	461	544	626	707	788	868
480	Watts	553	653	751	849	945	1041
560	Watts	646	762	877	990	1103	1215
640	Watts	738	871	1002	1132	1260	1388
720	Watts	830	980	1127	1273	1418	1562
800	Watts	922	1088	1252	1415	1575	1735
880	Watts	1014	1197	1378	1556	1733	1909
960	Watts	1107	1306	1503	1697	1891	2082
H = 1000 mm to 3000 mm increasing by 200 mm Vertical axe : H- 50 mm, horizontal dovn axe : L - 80 mm ( for 6 conections )

WAVY
Height mm	Length mm	Axe mm	Heat Output Watt
Height mm	Length mm	Axe mm	75°/65°/20°C	90°/70°/20°C
535	1550	1040	1105	1380
535	1850	1270	1318	1645
